SBMb - Sunscreen Controller


+ DOCUMENTATION + ROOM TEMPLATES + CASE

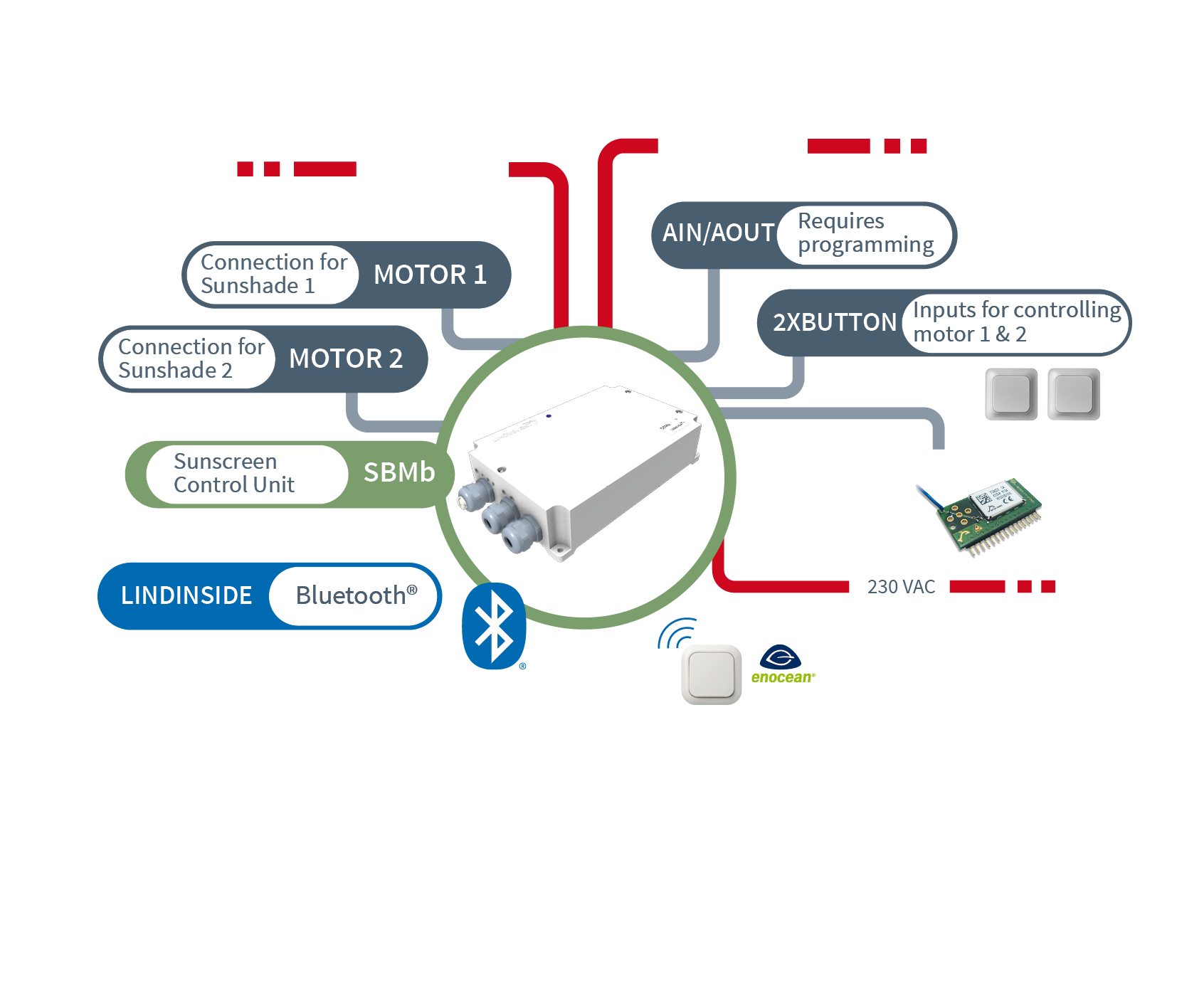

SBMb functions as a control unit for two relay-controlled motors for sunscreens and serves as a bridge to Lindinvent’s communication bus (CAN). At a supervisory level, the LINDINSHADE software is installed to manage data from outdoor conditions and the building interior. LINDINSHADE calculates and communicates the position each sunscreen should take.

SBMb is available in two versions

SBMb Version B06 (230 VAC motors)
SBMb Version B51 (24 VDC motors)

Features

  • SBMb is an addressable control unit and relay box for controlling two sunscreens.
  • The motors can be controlled individually, independent of each other.
  • All conditions and calculations necessary to determine whether a sunscreen should be up or down are handled by the LINDINSHADE function module installed on Lindinvent’s central unit.
  • SBMb supports wired and wireless switches that communicate via EnOcean technology. You can also connect wired push buttons to manually operate the sunscreen.

3D-model SBMb
