DCV-RCb - Room Climate Control


+ DOCUMENTATION + CASE

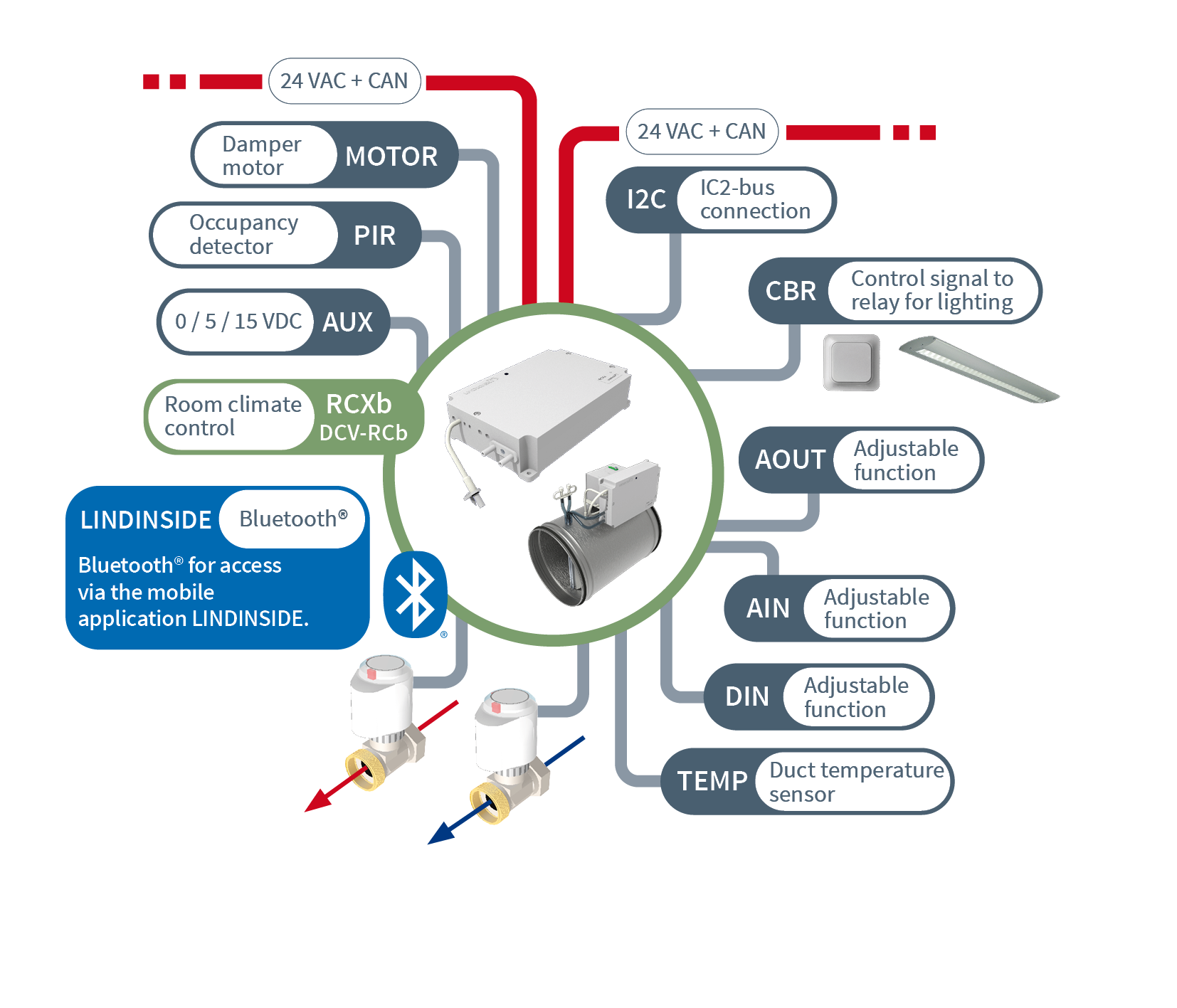

DCV-RCb is a control unit that consists of the room climate controller RCXb, a damper motor, and a damper with a measurement flange. Units with a circular damper (Ø100-500) are delivered pre-assembled at the factory. For other damper sizes, the damper, measurement flange, damper motor, and regulator are delivered separately.

Features

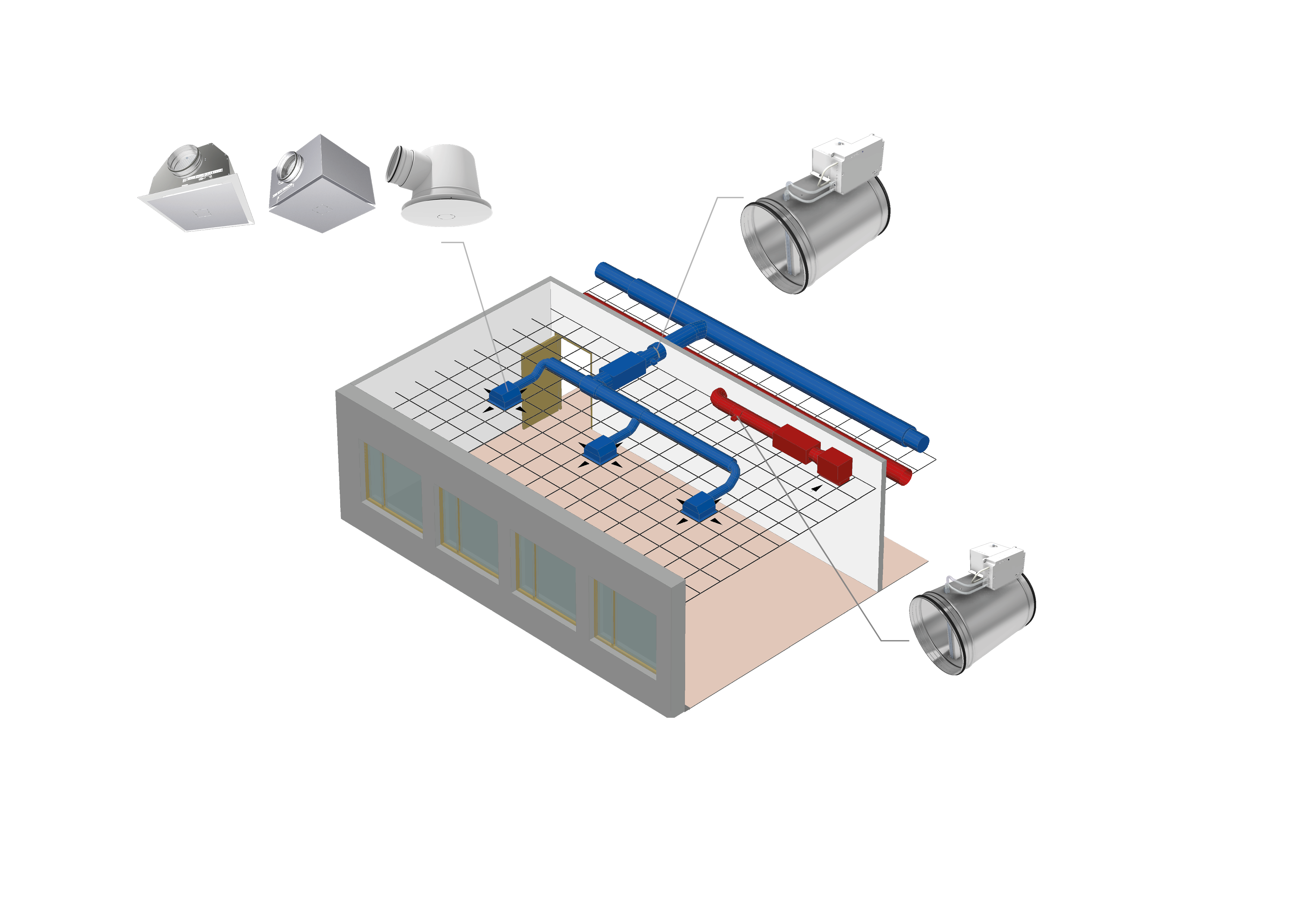

  • Designed for indoor climate control based on a demand-controlled total supply airflow that is then evenly distributed across multiple diffusers.
  • Intended for use with Lindinvent’s reactive supply air diffusers ISQ-M and ISQ-FM.
  • Supports occupancy and demand-based control of additional cooling and heating in sequence.
  • Equipped with a supply air duct temperature sensor.
  • Connections for various external sensors.
  • Ability to link lighting to occupancy-controlled lighting zones.
  • A number of parameters can be read and adjusted via the network and/or directly on the control unit.
  • Can be connected via Node ID to a communication bus (CAN) for access and communication with other cooperating nodes.
  • Factory-calibrated flow sensor and temperature sensor.
  • Menu-driven commissioning after logging into the controller.
  • Can communicate with other systems via LINDINTELL or via Gateway NCE with Modbus TCP/RTU.

User Interface

  • Login to Lindinvent’s central unit with the system software LINDINTELL.
  • Web tool LINDINSPECT.
  • Selected values are accessible via wall panel DRP over CAN.
  • Bluetooth® for access via the LINDINSIDE mobile application.

Included Components

  • Room climate controller - RCXb
  • Damper motor - DBA
  • Circular damper with measurement flange - SPMF
